RAILROAD OPERATING INFORMATION

NORTHERN INDIANA COMMUTER TRANSPORTATION DISTRICT

South Shore Line/West Lake Corridor

CONSTRUCTED 2025
CTC installed 2025
COMMUTER SERVICE: NICTD

Radio Frequency - 161.355 (AAR Channel 83)

Stations/Milepost Locations

(Current NICTD stops are capitalized)

Direction is eastward from Hammond to Munster
Distance is based on the junction in Hammond at Milepost 69.2 from original South Bend station
Milepost measurements on this branch descend from 69.2

68.9 HAMMOND
65.5 SOUTH HAMMOND
64.2 MUNSTER/RIDGE
61.4 MUNSTER/DYER

1 track from Hammond to Munster. CTC in use, controlled by dispatcher in Michigan City.

All stations have high level platforms. With no freight traffic anticipated as on the main line, gauntlet segments are not needed.

Milepost locations are not confirmed.

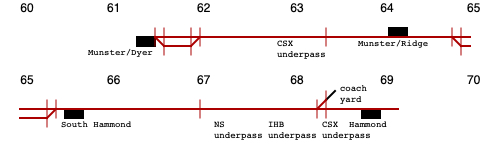

TRACK DIAGRAM
